Working in the petrochemical industry for over 35 years, Prism is a leading manufacturer of flame arrestors. While all flame arrestors operate on the same principle, they are not all created equal. Critical for safe operation, we deliver patented technologies for maximized flame propagation prevention with choices all in-line or end-of-line applications.

Why Flame Arrestors?

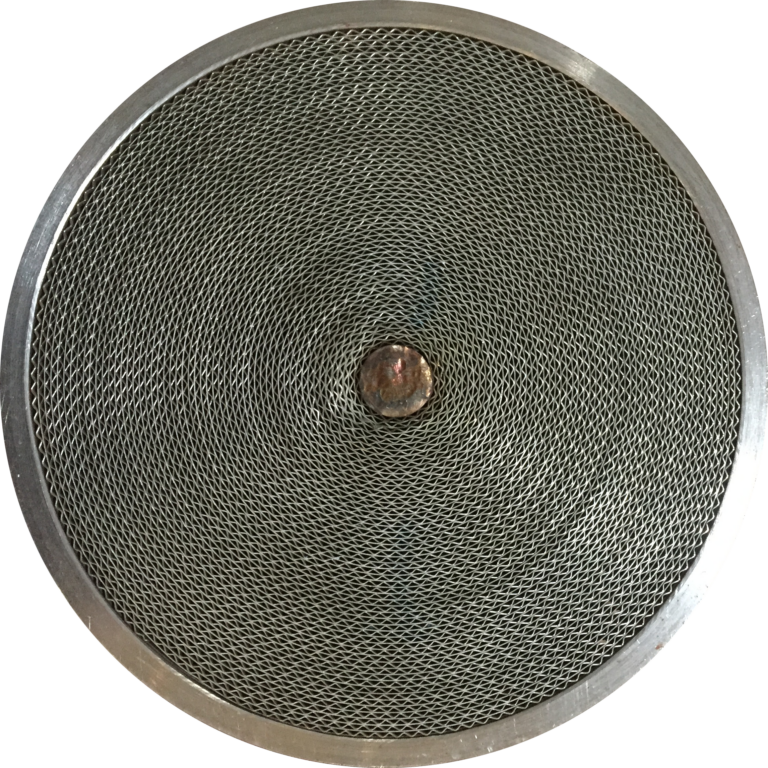

Flame arrestors are a critical safety device and a component in the safe operation of vapor control systems. They are a device fitted to the opening of an enclosure or to the connecting pipe work of a system of enclosures and whose intended function is to allow flow but prevent the transmission of flame propagating at supersonic velocity. Flame arrestors are passive devices with no moving parts. They prevent the propagation of flame from the exposed side of the enclosed flare system to the protected side using metal matrix creating a tortuous path called a flame cell or element.

Prism Flame Arrestors

Patented, state-of-the-art technology working for you!

Offering a wide array of flame arrestor technology, Prism has a choice for every configuration. The selection of the appropriate arrester depends on the flammable properties of the vapor/air mixture, operating conditions as well as how and where the arrester is installed with respect to the potential ignition source. The user must be assured that the arrester selected has been tested for conditions that match or exceed the intended application.

OUR PRODUCTS

Available Options

We specialize in :

In-Line Single Flange-B

Product Details

In-Line No Flange (ILNF)

Product Details

Deflagration Detonation Flame Arrestor

Product Details

Offset Dual Flange (OSDF)

Product Details

Offset Single Flange (OSSF)

Product Details

Cleaning & Reconditioning

Product Details

End of the Line Detonation and Standard Flame Arrestors

Product Details

Crimped Ribbon Standard Flame Arrestor

Product Details

In-Line Single Flange-B

Product Details

In-Line No Flange (ILNF)

Product Details

Cleaning & Reconditioning

Product Details

Crimped Ribbon Standard Flame Arrestor

Product Details

A SPECTRUM OF INNOVATION

Home

Who We Are

What We Do

How We Do It

Get In Touch

© 2022 PRISM INTEGRATED SOLUTIONS | Privacy | Terms of Use

Website Developed by RGE Solutions

In-Line Single Flange-B

AVAILABLE SIZES: 8’’

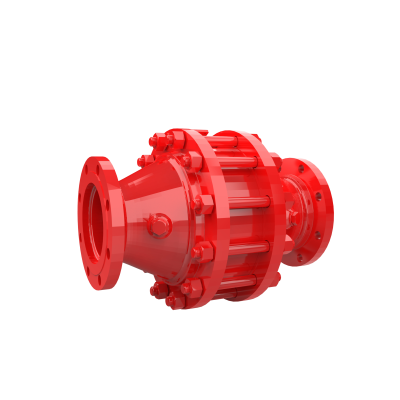

Prism’s ILSF-B SS detonation flare stack flame arrestor incorporates all the working features of the ILSF-A detonation flame arrestor, but the flame quenching element does not have a machined gasket face on it. Spiral wound gaskets cannot be used. The ILSF-B uses sheet gaskets that are compressed between 2 machined surfaces. This sealing system on the quenching element is the most used flare system in the oil and gas industry where economics are key in purchase decisions. The gasket arrangement meets all code requirements and are easy to manufacture. The compression seal is more than adequate for low pressure lines that are carrying volatile vapors.

In-Line No Flange (ILNF)

AVAILABLE SIZES: 8’’

The ILNF offers all the working characteristics of the ILSF-A and B but does not have a removable flame quenching element. The flame quenching element is instead welded into the unit. The INLF has CSA verification of performance subjected to the same testing as the ILSF-A and B.

The ILNF does not require gaskets and is lightweight, thus it is considerably more economically priced. Cleaning the ILNF requires the whole unit to be removed, but in most cases, there are fewer bolts required to remove the whole unit then there are just to remove the elements from the ILSF-A&B models. The ILNF units can be manufactured out of stainless steel and exotic metals for a much lower cost than units with removable elements. Spare units can be purchased for marginally higher prices than spare elements allowing for two utilizable units if needed.

The ILNF is the practical way to go if you need protection at a below average cost.

Deflagration Detonation Flame Arrestor

AVAILABLE SIZES: 8’’

The Prism SS Deflagration Detonation Flame Arrestor has all the same working characteristics of the ILNF with two exceptions. The first is reduced internal support required to handle an overdriven detonation, however all other flame fronts are easily contained and do not generate force. The internal components are identical to the ILSF-A, ILSF-B, and ILNF.

The DDFA’s second difference is that it has been subjected to and passed internal testing only. The DDFA is designed specifically to give adequate protection at a rock bottom price. Many of the crimped ribbon flame arrestors that are sold on the general market are false security and would fail dramatically if subjected to testing comparative to the DDFA. Through internal flare system testing, Prism has witnessed these failures. The DDFA is a combustion solution designed to take the place of the many crimped ribbon flame arrestors in the industry that are misapplied and are a liability if subjected to an event.

Offset Dual Flange (OSDF)

AVAILABLE SIZES: 8’’

The OSDF Prism SS Detonation Flame Arrestor offers the best quality and protection that you can buy in the following features: gasket integrity, flame propagation stoppage through the full flame front spectrum, having the longest continuous burn time rating, eliminating fluid traps, and guaranteed cleanability.

The OSDF incorporates dual flanges on the flame quenching element section to ensure that the proper gasket can be installed to accommodate critical conditions. The dual flange arrangement will remain intact during a severe continuous burn condition in which the downstream side of the Detonation Flame Arrestor gets red hot and can suffer from heat warpage and distortion. On the dual flange Detonation Flame Arrestor, the upstream flanges are not subjected to the elevated heat, so they remain intact and functional, keeping critical piping intact.

Offset Single Flange (OSSF)

AVAILABLE SIZES: 8’’

The Offset Single Flange incorporates all the working features of the OSDF except it does not utilize the dual flanges on the element section. It is manufactured with a machined gasket face on the element section, which is available for the OSSF and the OSDF.

The OSSF combustion solution was designed from an economic standpoint. Some applications call for exotic metals such as Hastelloy and Tantalum to be used for chemical attack corrosion resistant. Purchasing large diameter flanges using these types of materials can be very expensive, thus Prism has re-engineered these OSSFs to reduce costs, giving you superior performance at an applicable price.

Optimized Cleaning & Reconditioning.

AVAILABLE SIZES: 8’’

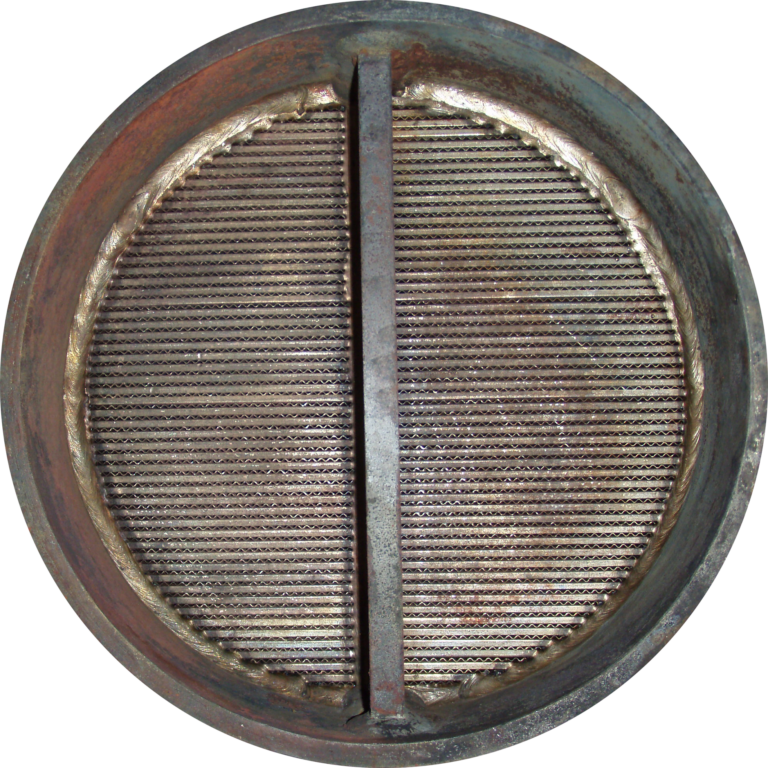

The Prism SS Detonation Flame Arrestor combustion tech was designed around the cleaning and reconditioning of the unit and has been extensively engineered and tested to do not just one job, but many. The unique grid assembly flare stack flame arrestor is a series of accurately and evenly spaced flat bars that are welded securely into the cell. The grid assembly also greatly improves the continuous burn rating, and acts as a protective guard for debris that may travel in the piping system.
